StarVent Implants

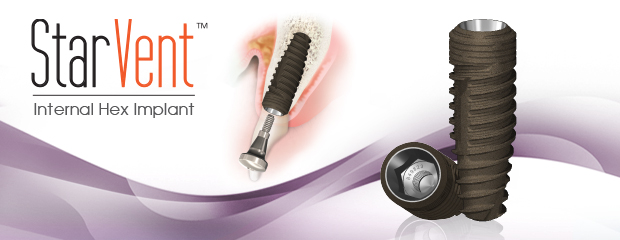

The StarVent Internal Hex Implant
The Park Dental Research Corp. StarVent implant system is designed with simplicity in mind. StarVent offers the clinician quality and value while providing predictable clinical results. Park’s quality dental implant system includes an intelligently engineered internal connection. The clinician has the option to place StarVent implants with either a one-stage or two-stage procedure.
- Available in 3.3, 3.75, 4.2 & 5.0 mm diameters
- Lengths include: 8 mm, 10 mm, 11.5 mm, 13 mm and 16 mm
StarVent Internal Hex Implant - Features
Shop Now
Order Direct from Us

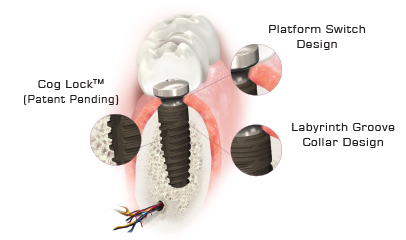

Features
- Bone Level Implant
- Platform Switch Design
- Labyrinth Groove Collar
- Cog Lock Threading
- Packaging
- Anatomical Design
- Simplified Surgical and Prosthetic Protocols
Bone Level Implant
The external surface of the StarVent implant is proprietary etched to enhance osseointegration. The implant design allows for placement at the bone level thus simplifying the restorative process in cases where thin soft tissue is present.
Platform Switch Design
StarVent implants offer a prosthetic platform switch that enhances esthetics while retaining the integrity of the soft and hard tissue barrier.
Labyrinth Groove Collar Design
The unique labyrinth groove feature is designed to inhibit cellular migration and assist in maintaining cortical integrity around the implant.
Cog LockTM Feature
The Cog Lock in the body of the implant provides a mechanical anti-rotational feature for immediate and long-term stability.
Packaging
StarVent packaging provides a simplified delivery of the implant direct to the patient’s mouth.
Anatomical Design
The StarVent has been designed with a natural anatomical root form shape in mind. Each surgical drill is engineered to prepare the osteotomy site with a taper to match the implant’s shape. This allows the implant to self-tap during the insertion and minimize excessive compression stresses to the bone. The StarVent implant system incorporates state-of-the-art enhancements and modifications designed to achieve a predictable surgical outcome.
Simplified Surgical and Prosthetic Protocols
The StarVent implant system includes an intuitive drilling sequence and can be placed either manually or with a motorized implant insertion protocol. All diameters of StarVent implants incorporate the same platform, thus simplifying the selection of abutments. The StarVent combination taper and hex connection provides a precision fit abutment to implant interface. StarVent abutments have been designed with a gingival concavity allowing for greater esthetics in the gingival area of the emergence profile. One standard hex driver fits all cover screws, attachment screws, impression copings and hex driven prosthetic abutments.
Shop Now
Order Direct from Us
Highest Quality
Park Dental Research is committed to using the highest quality development, production and innovation standards available.
